Street Lighting

thumb
Solar Peripheral Lighting

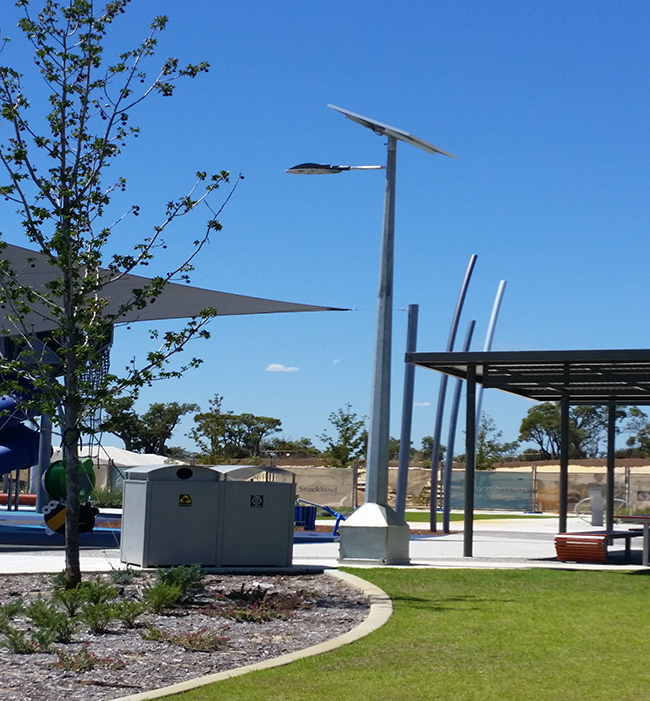

Solar Street Lighting Systems

Nexa Solar’s street lighting systems are an efficient means to provide lighting where it is needed the most . Solar street lighting systems provide cost savings by eliminating the need to trench standard electric wires for installation and providing no electric bill for the life of the system. Our street lights have been installed in highways and local roads, apartment complexes, rural villages, railway stations among others.

Every Nexa Solar street lighting system comes complete with a self-contained solar power assembly sized to run the specified solar light fixture as per the requirements set by the customer. Our team designs each system by the power consumed by the fixture and available sun provided by the geographical location of installation. The battery backup provides a minimum set autonomy for extended battery life and to take into account local weather conditions.

Solar Street Lightings – CFL Model
SPECIFICATIONS
  • Module:
  • 2 X 37 Wp or 1 X 74 Wp based on the Configuration
  • Battery
  • 12V 75 Ah, Lead Acid Tubular Type
  • Charge Controller Unit:
  • 6 Amps with efficiency > 85%
  • Lamp/Load:
  • 4 Pin 11 W CFL
  • Luminaries Housing
  • Weather Proof with High illuminative acrylic & reflector
  • Illumination:
  • 900 Lumens
  • Cable:
  • 2.5 Sq.mm, 2 Core Insulated
  • Pole:
  • Galvanized MS with 4.5 mtrs. Height
  • Battery Box:
  • Powder coated steel
  • Module Mounting Structure:
  • Galvanized MS
  • Hardwares & Accessories:
  • SS 304
Solar Street Lightings – CFL Model
SPECIFICATIONS
  • Module:
  • 1x45Wp Poly Crystalline Module
  • Battery
  • 12V 75 Ah, Lead Acid Tubular Type
  • Charge Controller Unit:
  • 5Amps with efficiency >85%
  • Lamp/Load:
  • White LED type, Multiple LED, View Angle minimum of 120deg
  • Luminaries Housing
  • Aluminium cast
  • Illumination:
  • Min 15 Lux when measured from Height of about 4 meter & illuminated over area of atleast 4meter diameter
  • Cable:
  • 2.5 Sq mm, 2 Core Insulated
  • Pole:
  • Galvanized MS with 4.5 mtrs. Height
  • Battery Box:
  • Powder coated steel
  • Module Mounting Structure:
  • Galvanized MS
  • Hardwares & Accessories:
  • SS 304
